Foil Drive Three Blade Propeller Hub Set

With the new higher powered Foil Drive v2 controller, the wireless signal strength between the hand controller and the box is greatly improved. In choppy conditions or with lower volume boards, this results in a much more reliable connection.

1x Wireless Throttle Controller
1x Wrist Floaty
1x Charge Pad and Cable
1x Re-Usable Silicon Tie

Looking for just a little more torque to get out of the water easier?

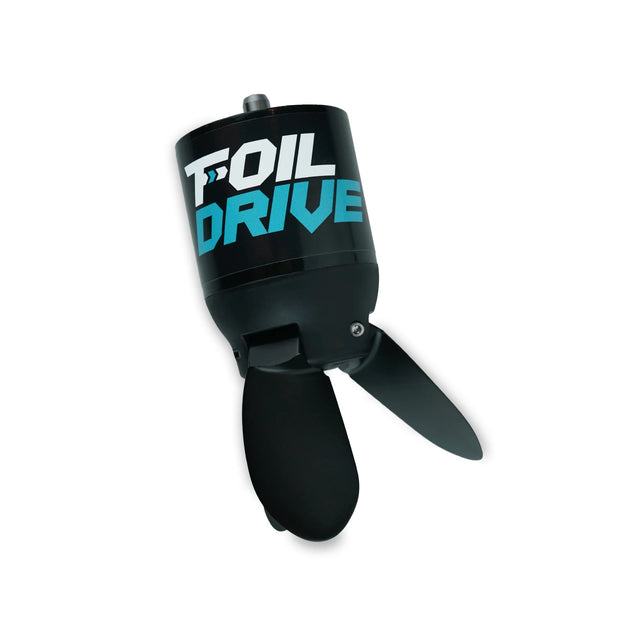

Designed to increase low end thrust, the Three Blade Propeller Hub is an optional upgrade for Foil Drive Assist PLUS units, a game changer for riders pushing the limits of rider weight, board size and foil size.

Why purchase the bundle? Having two rotors and propeller set ups means you can quickly interchange your set up from two to three propellers, ideal if you have multiple riders, or use cases!

When compared to the standard Two Blade Propeller system, the NEW Three Blade Propeller system improves performance by:

• Increased low end thrust. The extra blade helps push more water
• More torque at lower RPM, avoiding propeller cavitation under high load
• More effective surface driving when the props breach the surface
• A smoother, quieter ride due to lower RPM

It is specifically designed for riders who require more low-end torque, whether this is due to using a low volume board, a smaller or higher aspect foil than normal, or being a heavier rider.

Included with Three Blade Propeller Hubs is a range of hardware, with two options of bolts, Standard Propeller Bolts and new Button Top Bolts:

3x M3 30mm 2.5mm Standard Propeller Bolts can be used, these are the same as propeller bolts used on the 2 blade hub. Alternatively, 3x M3 30mm 2mm Button Top Propeller Bolts can be used to improve hydrodynamics, a secondary tool required. As they are not in the flow of water, they do not cause formation of small bubbles that then enter the prop.

The smaller Button Top Bolts require a 2mm Allen Key and cannot be used with your existing 2.5mm Driver that comes standard with all Foil Drive kits.

Note:

- Not compatible with Foil Drive Assist. While they do fit, these propellers require the higher RMP of the Assist PLUS in order to improve performance.

-Three Blade Propeller Hubs must be used with three propellers!

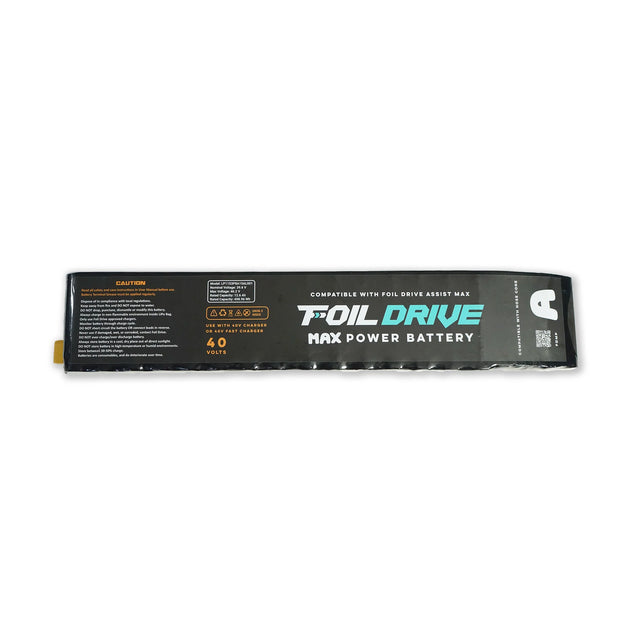

The Foil Drive MAX Power Battery is the largest battery with 498Wh capacity. This offers the longest run time for those looking for high power performance.

As with all Gen2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

Foil Drive MAX Power Battery,
Lipo Bag,
Power Plug Dust Cap.

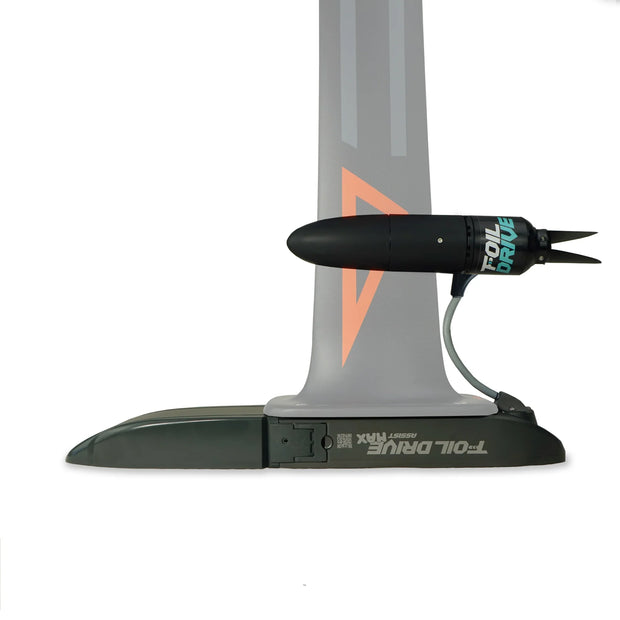

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

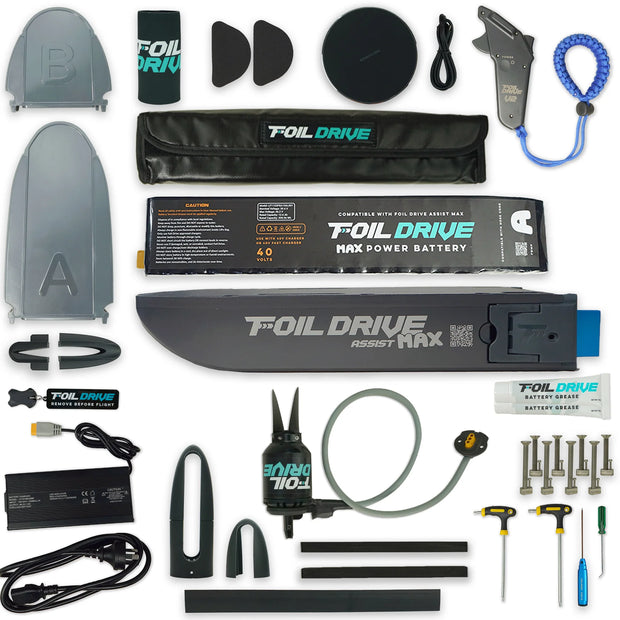

The kit includes everything you need to turn your existing hydrofoil and board into an electric assisted foiling machine:

V2 Motor now included in base kit v2 with 20cm Removable Cable as standard!

*Limited stock on hand, full set up delivery around 7 days.
  Please call for custom orders.

UNIVERSAL MAST ADAPTOR NOW INCLUDED!

Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose

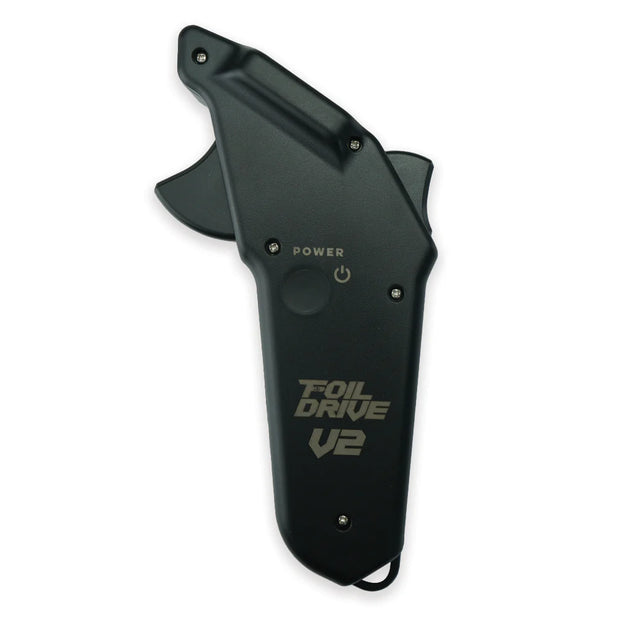

Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

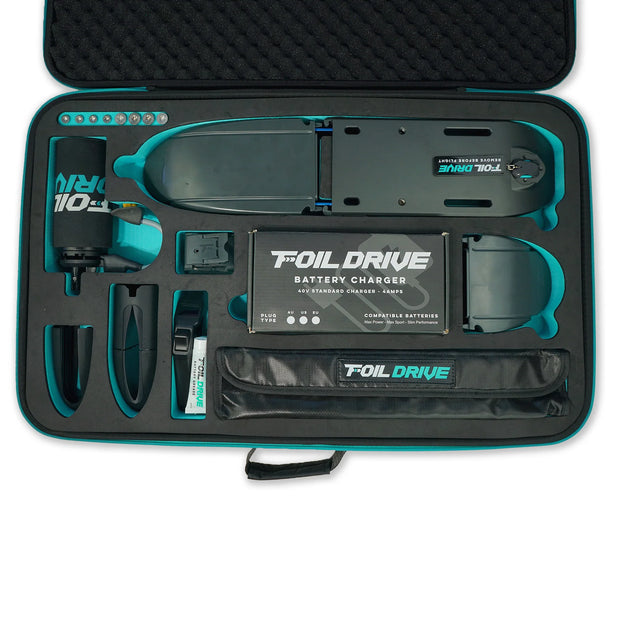

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Max Thrust: 27.5kg (60.6lbs)

Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)

Dimensions with Long A Nose Cone: L525 x W125 x H50mm

Dimensions with Short B Nose Cone: L415 x W250xH50mm

App compatibility: Foil Drive app, Android and IOS

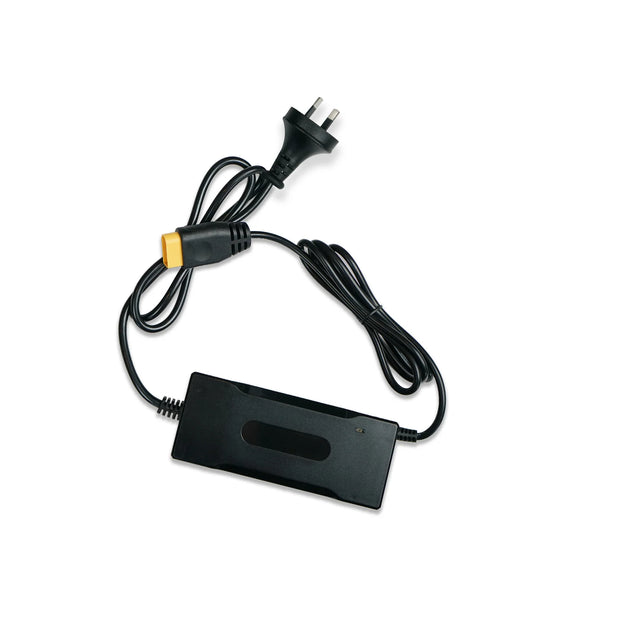

110-240v Lithium Battery Charger for your Foil Drive Assist PLUS Battery.

Please select correct charger to suit your battery - This charger is for 28v Batteries ONLY

Assist PLUS battery requires a 28v charger.

Do not use other chargers with your Foil Drive Batteries, do not modify the battery or charger in any way.

Chargers now have a V2 Battery Adaptor Heat Shrunk on the connection end. If you have a V1 Assist PLUS battery and require a new charger, this adaptor can simply be removed to reveal the V1 plug type.
